Product Description:

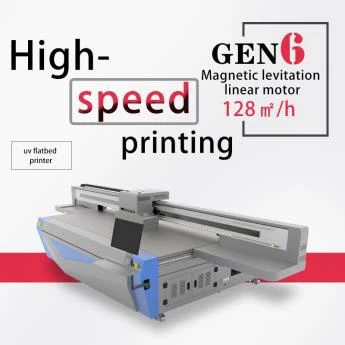

This UV ceramic printer is Using Ricoh G6 head, With magnetic levitation motor,fast speed and high resolution .And the white color varnish is output synchronously. It has high automatic function, simple operation, time saving, cost saving, energy saving and environmental protection. Not only can print ceramics, but also acrylic, PVC, wood, glass and other materials.
|
|
Product Feature ：
Automatic height detection system
Speed is 100% higher, precision 40% rise up then G5.
Anti-collision system
Ink tank heating system
Color-White-Color & Color-White-Varnish solutions for optional
UV LED curing system
Double Y-axis +Double screw drive.imported DC srvo motor.
Machine | YF-2512G6 UV flatbed printer | |
Print head | Ricoh GEN6 | |
Head No. | 2-12 | |
Print mode | 4C/6C/4C+W/6C+W/4C+W+V/6C+W+V | |
Print width | 2500*1300mm | |
Print speed | 4 Pass | 42㎡/h |
6 Pass | 35㎡/h | |
8 Pass | 21㎡/h | |
Print resolution | 720*1800 DPI | |
Print materials | Galass、Acylic、Wooden、Ceramic tiles、Phone case, Metal sheet、PVC board、Foamboard、3C product and etc. | |
Print height | ≤100mm | |
Curing system | LED water cooling system | |
Input format | TIFF/PDF/JPEG/EPS | |
RIP Software | Photoprint | |
Data connection | USB3.0 | |
Input power | 220VAC(±10%) single phase ，50/60 HZ | |
Power | 5.7KW（30A） 4.9m(L)*2.28m(W)*1.75m(H)/ 1650KG | |
Packing size/G W | ||
Product details:
1.Ricoh G6 print Head
High performance in speed and resolution 40% rise up , it is suitable for long time working ,24 hours rinning. Support high speed printing.
2.Meglev guide.
Compare trodition UV G5 flatbed machine the speed rise up 100% .
3.Unique ink supply system
It adopts 8 large capacity ink cartridges for humanized drawing and refilling , Apply white ink mixing system and lack of ink alarm system,instantly monitor ink usage.
4.Heavy industrial grade mechanical structure
It adopts pure steel structure and is processed by large scale gantry milling machine to ensure the flatness of the mechanical structure ,the whole structure is subjected to high temperature annealing treatment to ensure that the frame is not deformed,and the aacuracy error is guaranteed within 10 wires.
Packaging & Delivery:
Dimension :plywood 4900*2280*1750MM, 1360KGS, 19.2CBM,
Delivery: By sea/by air
Certificate：
FAQ：
Q1: How about the warranty?
Machine warranty is one year (12 months), start from the date of shipment.
Note: the parts not under warranty are print head, linear encoder, encoder sensor, ink system (including ink tube, damper,capping, ink pump), USB cable, print head cable, PHOTOPRINT / Maintop dongle and without the authorization of Dongguan Yifang
Digital Technology Co., Ltd disassemble parts caused by man-made damage.
Q2: About after-sales service
1) Provide training and guidance of installation, maintenance, etc. and relevant technical support.
2) Organize training, exchange of experience in sales and marketing information for the regional agents.
3) On-site service should be made an appointment in advance.
Q3: How about shipment?
1) If the shipping terms based on FOB, we can deliver the goods to any port in China you required ( normally Shenzhen, Guangzhou)or your warehouse. After that, you should arrange your appointed forwarder to pick the goods.
2) If the shipping terms based on EXW, you can arrange forwarder to pick the goods from our factory, or we can arrange to deliver the goods to your appointed warehouse in China (normally Guangdong Province). But you should pay the shipping cost to us or forwarder.
