Large format uv emboss printer
The principle of uv emboss printer is that after UV ink is printed, uv emboss printer is cured by UV lamp. To achieve the effect of embossing, it is necessary to repeat printing at least 2 times in the material supplier, so that the UV white ink will continue to accumulate, and finally show different levels of embossing effects, giving people a visually stunning effect.
 |  |  |
1. The use of a heavy-industrial-grade integrated machine frame can maximize the stability of the vibration caused by the printing process.
2. Equipped with the latest magnetic levitation linear motor machine, which can print more products in the shortest time.

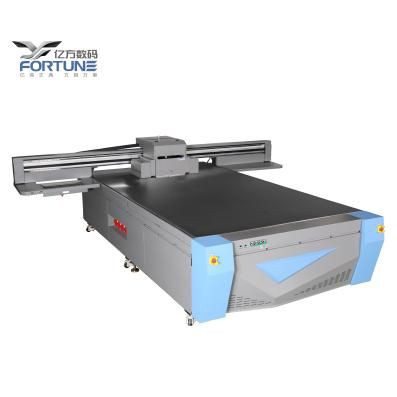

Machine | YF-2032G/3220G UV flatbed printer | |
Print head | Ricoh GEN5 Gray level piezoelectric nozzle | |
Head No. | 2-12 | |
Print mode | 4C/6C/4C+W/6C+W/Double 4C+W/Double 6C+W/Triple 4C + double W/Triple 6C + Double W | |
Print width | 200mm x 3200mm | |
Print speed | 4 Pass | 24㎡/h |
6 Pass | 20㎡/h | |
8 Pass | 16㎡/h | |
Print resolution | 720*1800 DPI | |
Print materials | Galass、Acylic plate、Wooden、Ceramic tiles、Metal sheet、PVC board、Foamboard、3C product and etc. | |
Print height | ≤100mm | |
Curing system | LED water cooling system | |
Input format | TIFF/PDF/JPEG/EPS | |
RIP Software | Photoprint/Onyx/Caldera/Colorget | |
Data connection | USB3.0 | |
Input power | 220VAC(±10%) single phase ，50/60 HZ | |
Power | 5.5KW（30A） | |
Machine size/N W | 5.5m(L)*2.95m(W)*1.47m(H)/ 2300KG | |
Packing size/G W | 5.8m(L)*3.2m(W)*1.75m(H)/ 2400KG | |
Our Services：
1. 12 monthss warranty, life-long after-sales service.
2. Technologist instant online support service.
3. One to one professional technical free training.
4. Send engineers to install the machine overseas.
5. Technical Support, Remote guidance maintenance.
6. 24-hours Online Service, Good online service, instantly answer the questions for you.
7. We can provide ODM/OEM service.
