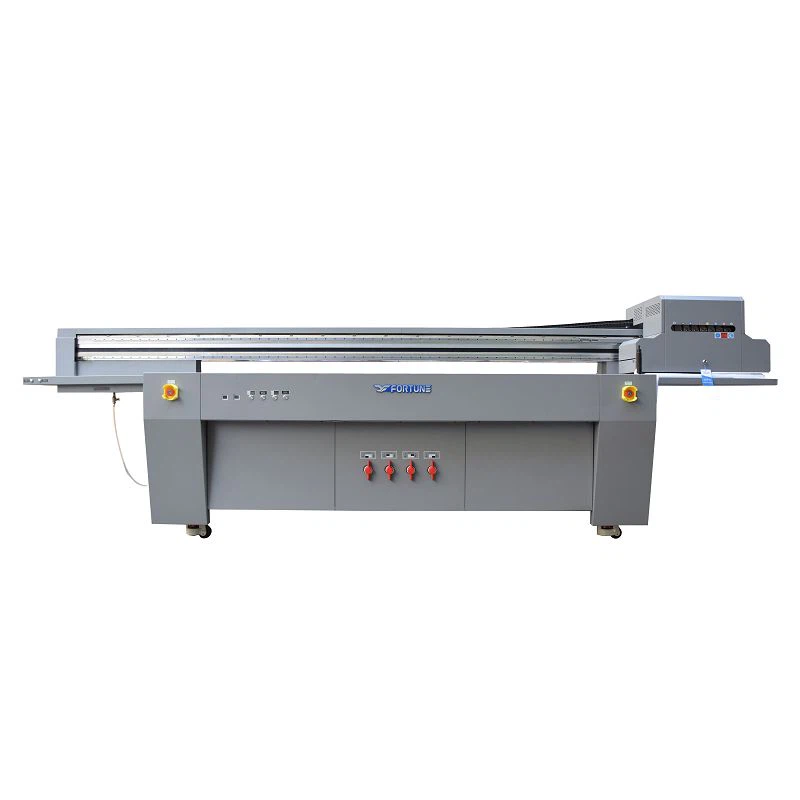

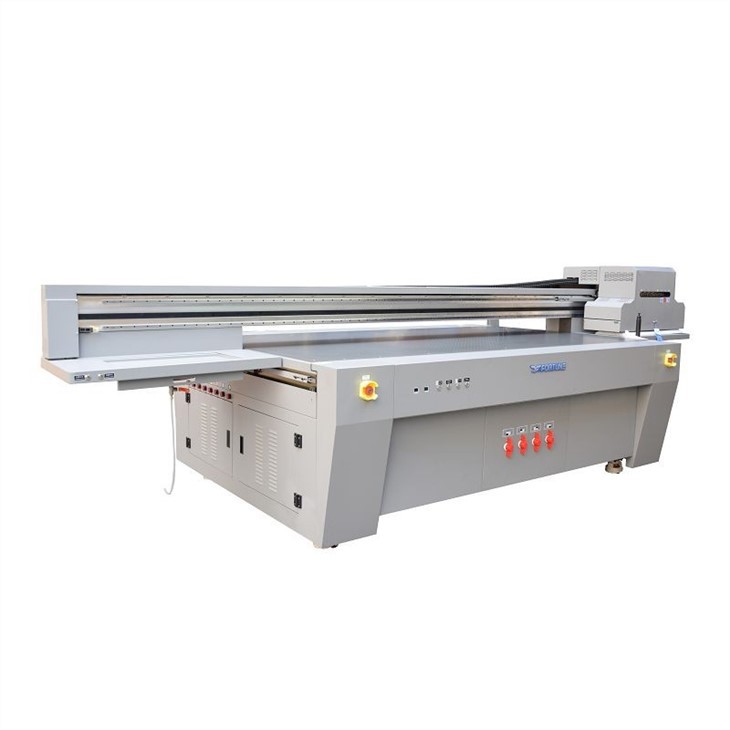

YF-2513F: Industrial UV Flatbed Printer for Premium Packaging

The YF-2513F UV flatbed printer is a high-performance industrial printing system engineered specifically for the packaging industry. Designed to deliver exceptional full-color printing on a wide variety of flat surfaces without direct contact, this machine enables precise and vibrant customization on materials including packaging boxes, acrylic, wood, ceramics, metal sheets, PVC, foamboard, and various 3C products. Its non-contact inkjet technology ensures high-quality results across diverse applications such as promotional packaging, decorative glass, leather goods, and advertising signage.

Built with a heavy-duty industrial-grade frame, the printer guarantees outstanding stability and long-term durability. It is equipped with an anti-collision system and an ink tank heating mechanism to maintain optimal viscosity and printing consistency. The advanced UV LED curing system, coupled with a double Y-axis and dual-screw drive powered by imported DC servo motors, ensures smooth operation, high positioning accuracy, and energy-efficient performance.

The machine utilizes Ricoh GEN5 grey-level piezoelectric printheads, configurable from 2 to 12 units, supporting multiple printing modes such as 4C, 6C, white ink, and multi-layer combinations. It offers a substantial printing area of 2400mm x 1200mm with a maximum object height of 100mm. Operators can achieve speeds up to 22 m²/h in 4-pass mode, while maintaining a resolution of 720x1800 DPI for sharp and detailed outputs.

Compatible with major RIP software including Photoprint, Onyx, Caldera, and Colorget, the system supports TIFF, PDF, JPEG, and EPS file formats. Data is transmitted via USB 3.0 for high-speed processing. It operates on a 220VAC (±10%) single-phase power supply at 50/60 Hz, with a total power consumption of 4.8KW.

The unit measures 4.55m (L) x 2.0m (W) x 1.4m (H) with a net weight of 1550kg. Shipping dimensions are 4.9m (L) x 2.28m (W) x 1.75m (H) with a gross weight of 1650kg.

Comprehensive service support includes a 12-month warranty and lifelong after-sales assistance. We provide instant online technologist support, one-on-one operator training, and overseas machine installation by certified engineers. Our 24/7 online service ensures prompt responses to technical queries, and ODM/OEM solutions are available to meet specific customer requirements.

1.Heavy-duty industrial grade machine frame, excellent stability and durability

2.Anti-collision system, Ink tank heating system

3.UV LED curing system, Double Y-axis +Double screw drive.imported DC srvo motor.

4.Advertising industry: ABS, Polyurethane, PET, Acrylic,MDF,PVC,etc. For signs, banner, backlight, tags, etc.

Machine		YF-2513F UV flatbed printer
Print head		Ricoh GEN5 Gray level piezoelectric nozzle
Head No.		2-12
Print mode		4C/6C/4C+W/6C+W/Double 4C+W/Double 6C+W/Triple 4C + double W/Triple 6C + Double W
Print width		2400mm x 1200mm
Print speed	4 Pass	22㎡/h
	6 Pass	18㎡/h
	8 Pass	14㎡/h
Print resolution		720*1800 DPI
Print materials		Galass,Acylic plate,Wooden,Ceramic tiles,Metal sheet,PVC board,Foamboard,3C product and etc.
Print height		≤100mm
Curing system		LED water cooling system
Input format		TIFF/PDF/JPEG/EPS
RIP Software		Photoprint/Onyx/Caldera/Colorget
Data connection		USB3.0
Input power		220VAC(±10%) single phase ,50/60 HZ
Power		4.8KW(30A)
Machine size/N W		4.55m(L)2.0m(W)1.4m(H)/ 1550KG
Packing size/G W		4.9m(L)2.28m(W)1.75m(H)/ 1650KG
