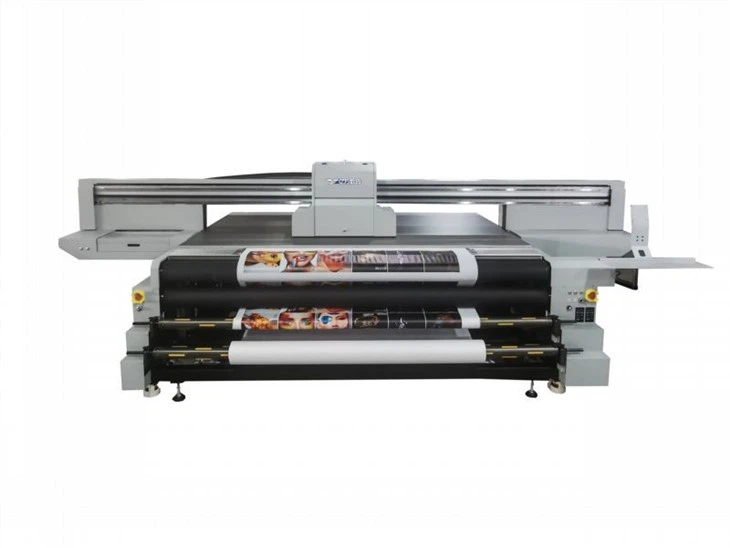

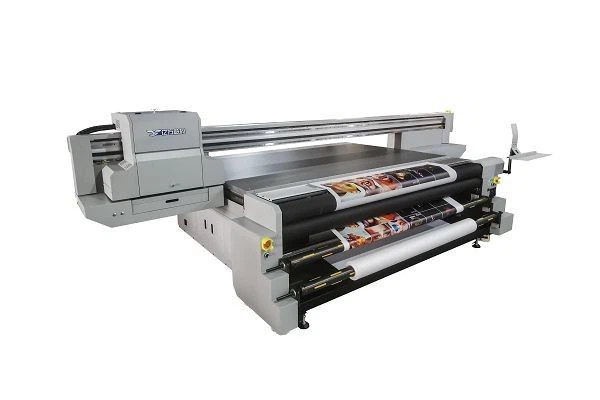

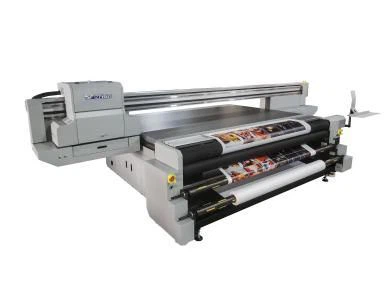

Product Description:
This omni printer is The dual-purpose printing function of coil and sheet, using neutral ink, can print sheet and roller materials. It can print on the surface of a variety of materials, such as (glass, soft film, ceiling, steel plate, home appliance panels) and other materials can print images, which is the core of digital inkjet technology, occupying the characteristics of ordinary UV machines, high precision , Fastness, is a substitute for traditional printing.
|
|
Product Feature：
Brand Name:Fortune
Product Name:omni printer
Ricoh G5/G6 heads optional
Integrate flatbed & roll to roll platform
high resolution automatic height detection & anti-collisionsystem
Color-White-Color & Color-White-Varnish solutions for optional
Double Y-axis +Double screw drive.imported DC srvo motor.
Can click flat & roll printing modeon computer conveniently
Configure two large diameter rubber rollers
Machine | YF-2512KR | |
Print head | Ricoh Gen5 | |
Head No. | 2-8 | |
Print mode | CMYK/CMYK LcLm + W / V | |
Print width | 2500mm*1200mm | |
Speed | 4 Pass | 15㎡/h |
6 Pass | 12㎡/h | |
8 Pass | 8㎡/h | |
Print resolution | 720*1800 DPI | |
Print materials | Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic ,Phone shell,Jade,Vinyl,Flex Banne etc | |
Print height | ≤100mm | |
Curing system | LED water cooling system | |
Input format | TIFF/PDF/JPEG/EPS | |
RIP Software | Photoprint | |
Data connection | USB3.0 | |
Input power | 220VAC(±10%) single phase ，50/60 HZ | |
Power | 5KW（30A） | |
Packing size/G W | 4750mm*2560mm*1500mm 1500KG | |
Details:
1.Ricoh G5 print Head High performance in speed and resolution, long time working,
2.Double Y-Axis and screw The machine Y-Axis transmission direction adopts double screw rod and double guide rail ,improve the precision of the printed picture and ensure the high strength long time production precision
3.Configure two large diameter rubber rollers To ensure materials receive well , no wrinkle and run off.
4.Double suction Vacuum Double Vacuum has stronger adsorption force and can easily deformed material on the platform to ensure the flatness of the printed material .,impove the precision of the printing |
Exhibition & Customer visit
Service：
What service can we provide for you?
1.One year warranty, life-long after-sales service.
2.Technologist instant online support service.
3.One to one professional technical free training.
4.Send engineers to install the machine overseas.
5.Technical Support, Remote guidance maintenance
6.24-hours Online Service, Good online service,instantly answer the questions for you.
