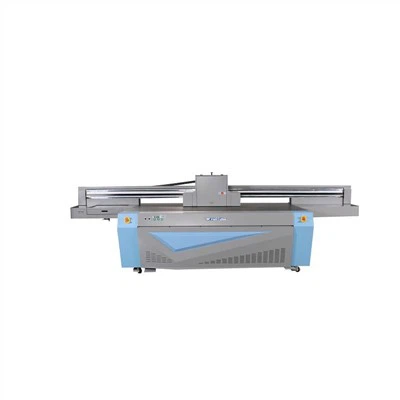

Gift box printer

The gift box printer uses UV photosensitive technology. The principle of gift box printer is to use computer input to control the inkjet. The printed picture is bumpy because of the accumulation of white ink printing, and the ink can not see the light, because the ink will solidify when exposed to light. When printing, it is irradiated with strong light to dry, because the ink is a photosensitive ink, it will solidify and dry when exposed to light, and achieve the effect of immediate printing and immediate drying.

1.The gift box printer have heavy-duty industrial grade machine frame, excellent stability and durability.

2.The gift box printer have Anti-collision system, Ink tank heating system

3.The gift box printer have UV LED curing system, Double Y-axis +Double screw drive.imported DC srvo motor.

4.The gift box printer use advertising industry: ABS, Polyurethane, PET, Acrylic,MDF,PVC,etc. For signs, banner, backlight, tags, etc.

Machine		YF-1610T UV flatbed printer
Print head		Ricoh GEN5	Toshiba CE4
Head No.		2-8
Print mode		4C/6C/4C+W/6C+W/4C+W+V/6C+W+V
Print width		1600mm x 1000mm
Print speed	4 Pass	20㎡/h	/
	6 Pass	16㎡/h	8㎡/h
	8 Pass	12㎡/h	6㎡/h
Print resolution		1800*600 DPI
Print materials		Galass、Acylic、Wooden、Ceramic tiles、Metal sheet、PVC board、Foamboard、3C product and etc.
Print height		≤150mm
Curing system		LED water cooling system
Input format		TIFF/PDF/JPEG/EPS
RIP Software		Photoprint/Onyx/Caldera/Colorget
Data connection		USB3.0
Machine size/N W		3.2m(L)1.7m(W)1.4m(H)/ 1100KG
Packing size/G W		3.5m(L)2.0m(W)1.6m(H)/ 1180KG
