YF-N2513A: High-Speed Large-Format UV Flatbed Printer with Ricoh Grayscale Technology

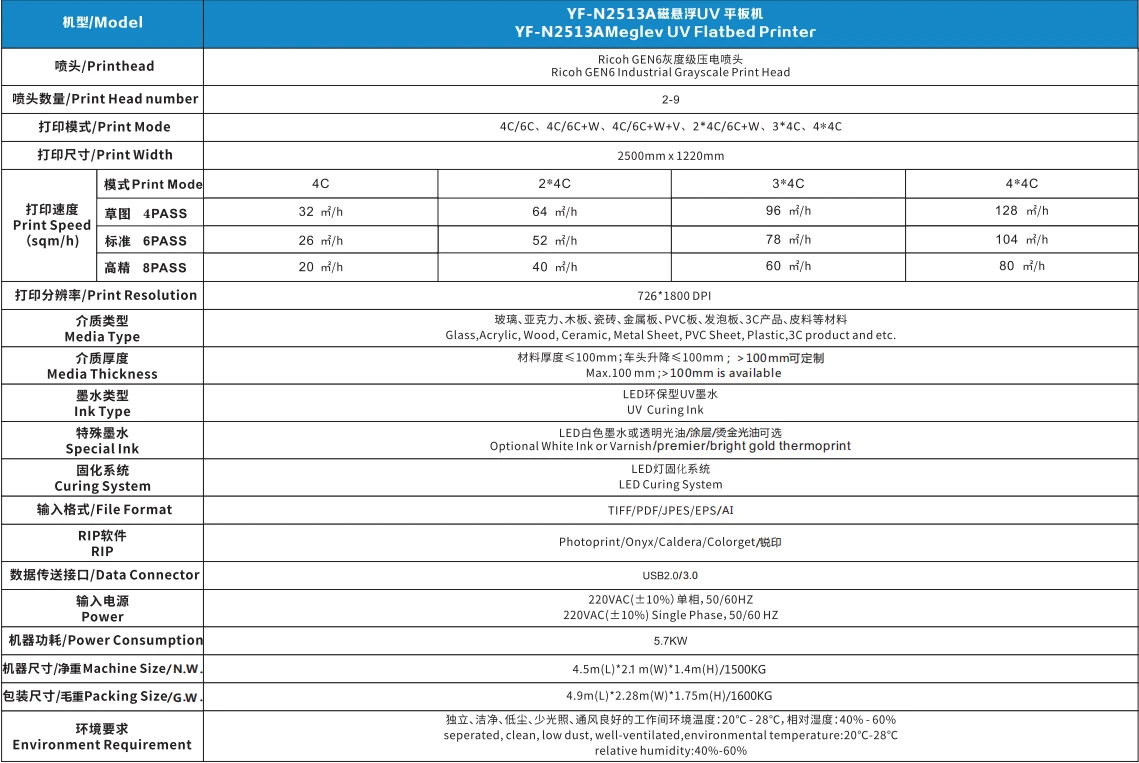

The YF-N2513A represents a high-performance large-format UV flatbed printer designed for industrial-scale production, offering a substantial printing area of 2500mm x 1220mm. Equipped with advanced Ricoh GENG industrial grayscale printheads-configurable from 2 to 9 units-this system supports highly flexible printing modes including 4C to 6C, plus optional white and varnish inks, as well as multi-layer color combinations such as 2x4C, 3x4C, and 4x4C. It achieves remarkable production efficiency, with speeds reaching up to 128 m²/h in 4PASS mode, while maintaining ultra-high definition output at 726x1800 DPI resolution. The printer handles a wide range of substrates up to 100mm thick, including glass, acrylic, wood, ceramic, metal, PVC, plastics, and 3C products.
A standout feature is its support for multiple special ink options such as white UV ink, varnish, and protective coatings, enabling diverse decorative and functional finishes. The LED UV curing system ensures rapid, eco-friendly drying with low heat emission and reduced power consumption. Compatibility with major RIP software platforms-including Onyx, Caldera, and Photoprint-ensures seamless workflow integration and reliable color management. With USB 3.0 connectivity and standard AI/PDF/EPS file support, the printer suits various professional environments.
We offer global shipping with a monthly supply capacity of 100 units. The machine has a net weight of 1500 kg and shipping dimensions of 4.9m (L) x 2.28m (W) x 1.75m (H). It operates on 220V AC single-phase power with a total power consumption of 5.7 kW. For optimal performance, installation in a clean, low-dust, and temperature-controlled environment (20°C–28°C, 40%–60% humidity) is recommended. Comprehensive technical support and software updates are provided to ensure long-term printing consistency and minimal maintenance.
