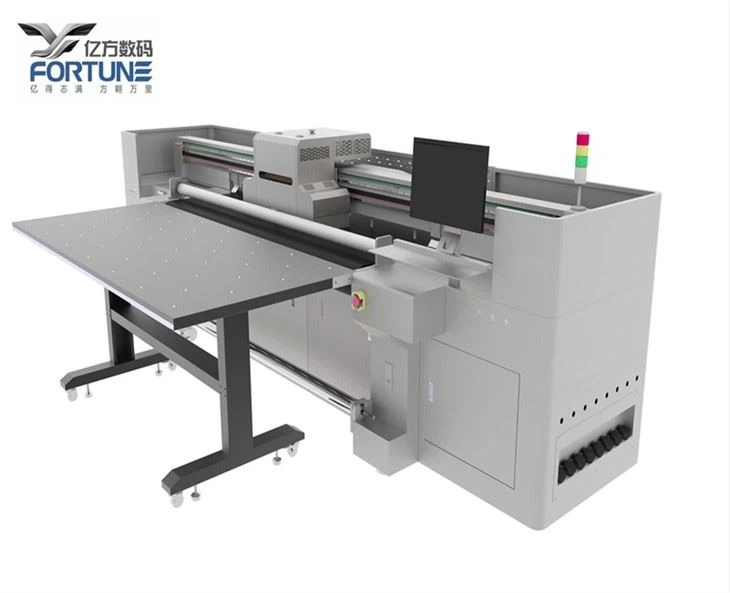

YF-1800MH UV Hybrid Printer: High-Definition Printing for Light Box and Multi-Material Applications

The YF-1800MH is an industrial-grade UV hybrid printer engineered for high-precision, high-speed production of light box displays and a wide range of flexible and rigid substrates. Designed with a dual-function roll-to-roll and flatbed platform, it offers exceptional versatility for soft films, coated banners, acrylic, wood, ceramic tiles, and 3C products, with a maximum print width of 1800mm and adaptability for materials up to 45mm in height. Equipped with Ricoh GEN5 printheads (configurable from 2 to 8 units), the printer delivers outstanding image quality with a resolution of 720×1800 DPI, achieving speeds up to 25 m²/h in 4PASS mode. Its advanced LED water-cooling curing system ensures consistent ink adhesion and low energy consumption.

Built with a heavy-duty industrial structure, the printer incorporates an automatic height detection system and a highly sensitive carriage protection mechanism for extended operational life and minimal maintenance. Support for multiple printing modes-including 4C, 4C+W, and 4C+W+4C-enables efficient white ink and double-sided printing applications, ideal for high-value display and signage products. Compatible with all major RIP software such as Onyx, Caldera, and Photoprint, it simplifies workflow integration while supporting standard file formats including PDF, TIFF, and EPS.

We offer a monthly supply capacity of 20 units, with machines available in standard gray/black or customized finishes. The printer requires a 220VAC (±10%) single-phase power supply at 50/60 Hz, with a total power consumption of 4KW. Shipping is facilitated in secure packaging, with detailed machine and packaging dimensions available upon inquiry. Dedicated after-sales support includes remote technical assistance and software updates to ensure optimal performance. Operating environment recommendations emphasize stable temperature and humidity conditions to maintain printhead integrity and output consistency.

Product Feature and Application：

Heavy industrial grade mechanical structure

Automatic height detection system

Highly sensitive carriage protection device

Various print model

Roll and flatbed platform

Application:

Show detail:

Industrial grade heavy duty structure, designed and processed strictly according to industrial grade

The front material pressure bar will be linked with the printing system in the future to achieve automatic lifting

Compatible with Ricoh G5 and G6 nozzles at the same time ,can meet different customer needs.

Magnetic suspension motor can be selected

Both the front and rear unwinding devices adopt air take up shaft and add a group of small roll material unwinding devices

Feeding positioning device and four-way material fixing device to meet the simultaneous printing of multiple sizes of materials (can position 1mm plates)

Yifang industrial machines all use German IGUS drag chain and wire

Automatic rear bumper device and humanized feeding design

Adopt electric partition device, divided into four areas at the same time, compatible with different width materials.

Metal switch and integrated design, high-end and easy to operate.

Packaging & Delivery:

About Us:

Dongguan Yifang Digital Technology Co.Ltd. Is a high tech enterprises with independent intellectual property rights, professional R&D,production and sales of digital inkjet printing machine.The company covers an area of 15000 square meters, has more than 200 employees,brought together the national digital inkjet industry talents,The core team has 15 yeas of industry experience, together to create six series of products:Epson inkjet Printer,UV flatbed,UV roll to roll , Latex , Solvent , Sublimation Direct Printing Machine,it has provide mature application solutions for advertising,digital 3C products, glass ,tiles, leather ,textile,decorative building materials and etc.

Our product are exported to Europe , the Americas,the Middle East,Africa,Southeast Asia,China,more than 50 countries and region s,and establish a good customer reputation and brand image.

Certificate:

FAQ：

1) Do you offer free printing samples?
Yes, we can print some samples according to customer's requirements.

2) What's your delivery time?
We will arrange the delivery within 10-15 working days after received the deposit.

3) What payment method are supported?
Payment method is T/T or LC, PayPal, Western Union, Credit Card, etc.

4) If I have some technical problem, how can you help us to solve it?
Detailed description, photos or video will help our technician analyze the problem and give solution accordingly.

5) Once there is something need to replace, what can I do?

We supply all the spare parts for the printer. If any part is broken, we will fix it or send you new parts after users send back the broken ones. We suggest that users order spare parts package for long time maintenance and fast replacement.

6) Can we send our technician to your factory for training?
Yes, you are warmly welcome to visit us for free training.
