Product Description:
This ceiling printer is the picture can be set in DIY, and the printing effect has a 3D embossed three-dimensional effect, No wrinkling, no stretching and deformation, breaking through the shape fixation defects of traditional solid ceilings, shaping into a variety of flat and three-dimensional shapes, so that the decoration design has a perfect overall effect and unlimited creativity . which can greatly increase the added value of the product.
 |  |
Product Feature and Application：
★ A Variety of print head configuration , Ricoh Gen5, Ricoh GEN6, Konica 1024i.
★ Imported chain and high-flex cable, top level drag chain solution.
★ Imported dual linear mute guides make less noises during printing.
★ Industrial-grade heavy-duty structure design, more simple and stable.
★ Intelligent ink level alarm system.
★ LED UV Water cooling system, high performance, long lifetime, and low energy consumption.
★ Intelligent constant temperature ink system.
★ Installed with four large diameter rubber rollers to ensure that the material is not easy to wrinkle and run off.
★ Available magnetic levitation linear and belt .
Brand name: | Fortune |
Product Name: | Ceiling printer |
Place of origin: | Dongguan City, Guangdong Province, China |
Supply Abilit: | 20 Piece/Pieces per Month |
Color: | Blue/black or customized |
Machine | YF-3200Z UV Roll To Roll Printer | |
Print head | Ricoh GEN5/Ricoh Gen6 Gray level piezoelectric nozzle | |
Head No. | 2-16 | |
Print mode | 4C/6C+W/4C/6C | |
Print width | 3200mm | |
Print speed | 4 Pass | 66㎡/h |
6 Pass | 50㎡/h | |
8 Pass | 30㎡/h | |
Print resolution | 720*1800 DPI | |
Print materials | Soft film,Backlit,light box,3P cloth, Mesh cloth, Wallpaper , leather and etc | |
Print height | ≤5mm | |
Curing system | LED water cooling system | |
Input format | TIFF/PDF/JPEG/EPS | |
RIP Software | Photoprint/Onyx/Caldera/Colorget | |
Data connection | USB3.0 | |
Input power | 220VAC(±10%) single phase ,50/60 HZ | |
Power | 4KW（30A） | |
Machine size/N W | 5.4m(L)*1.3m(W)*1.7m(H) | |
Packing size/G W | 5.7m(L)*1.4m(W)*2.0m(H) | |
Application:
Show detail:
1.Intelligent ink level alarm system If the ink tand is lock of ink , then the alarm system buzzer sounds,remind you to add ink .
2.Aluminum alloy secondary ink cartridge It have strong corrosion resistance. With its own constant temperature system. It can fully guarantee the smoothness of ink,and guarantee the endurance of printing even in low temperature enviroment .
3.Platform cooling system Can balance the temperature and achieve perfect color printing .Prevent the material from being deformed by heat
4.Germany IGUS chain and high-flex cable Germany IGUS towline and high-flex cable, anti-wear,anti-return performance has reached international standards . Effectively extend the life of the towline and cable. Correction function
5.Available magnetic levitation linear motor.Speed is 100% faster than Belt,high production.
6.Four large diameter rubber rollers To ensure that the material is not easy to wrinkle and run off.Accurate printing, small error . |
|
|

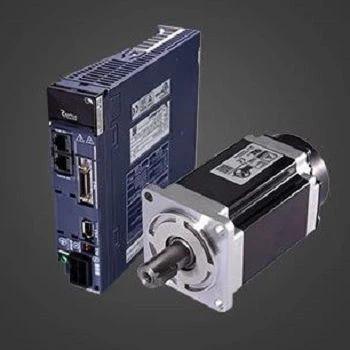

| FUJI servo motor system from Japan THK guide rail from Japan | |
|
|
| Aluminum beam Anti-collision system | |
|
|
| 5 pcs materials support rubber rollers Two pcs air shaft | |
Packaging & Delivery:
Dimension: | 5700*1400*21000mm |
Gross weight : | 2500 KGS |
Volume: | 15.96 CBM |
Mode of transport: | By sea |
Package : | Wooden |
About Us:
Dongguan Yifang Digital Technology Co.,Ltd is a high- tech enterprises with independent intellectual property rights, professional R&D, production and sales of digital inkjet printing machines.
Factory has an independent clean production workshop, covers an areas of 1000 square meters.Using the modeled management style so that staff develop good work habits, to ensure that each product quality and quantity to complete.
Fortune,one of the largest manufacturer of Eco solvent, Textile flag, sublimation printer and UV roll to roll/ UV flatbed/UV hybrid machine & suppliers of spare parts and ink.
Certificate:
FAQ：
Q1: How about the warranty?
Machine warranty is one year (12 months), start from the date of shipment.
Note: the parts not under warranty are print head, linear encoder, encoder sensor, ink system (including ink tube, damper,
capping, ink pump), USB cable, print head cable, PHOTOPRINT / Maintop dongle and without the authorization of Dongguan Yifang
Digital Technology Co., Ltd disassemble parts caused by man-made damage.
Q2: About after-sales service
1) Provide training and guidance of installation, maintenance, etc. and relevant technical support.
2) Organize training, exchange of experience in sales and marketing information for the regional agents.
3) On-site service should be made an appointment in advance.
Q3: How about shipment?
1) If the shipping terms based on FOB, we can deliver the goods to any port in China you required ( normally Shenzhen, Guangzhou)
or your warehouse. After that, you should arrange your appointed forwarder to pick the goods.
2) If the shipping terms based on EXW, you can arrange forwarder to pick the goods from our factory, or we can arrange to deliver
the goods to your appointed warehouse in China (normally Guangdong Province). But you should pay the shipping cost to us or forwarder.
