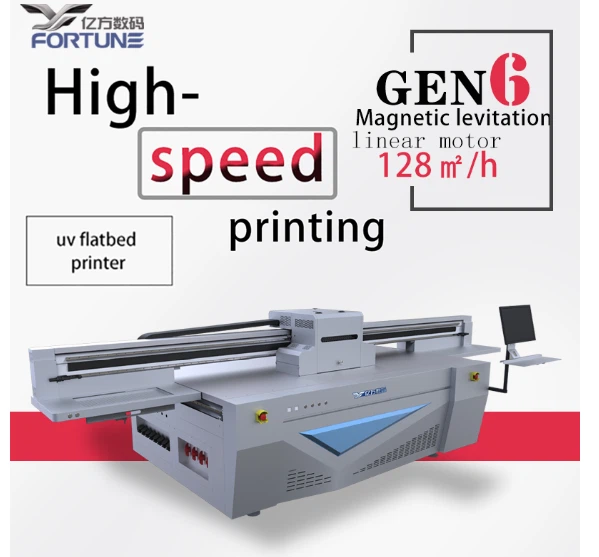

YF-X2513 Maglev UV Flatbed Printer: Redefine Your Printing Possibilities
📌About The Machine
The YF-X2513 Maglev UV Flatbed Printer is a cutting-edge printing solution engineered to deliver exceptional performance across diverse applications. Combining advanced technologies with robust design, this machine stands out as a reliable partner for businesses seeking precision, efficiency, and versatility in their printing operations.
Machine Parameters:
- 喷头(Printhead)：Ricoh Gen5/Gen6
- 喷头数量(Print Head number)：2 - 9
- 打印模式(Print Mode)：4C/6C,4C/6C - W,4C/6C - W+V,24C/6C+W,34C,4*4C
- 打印尺寸(Print Width)：2500mm×1220mm
- 打印速度(Print Speed)(sqm/h)
- 草图 4PASS：4C 模式下 32 ㎡/h ;24C 模式下 64 ㎡/h ;34C 模式下 96 ㎡/h ;4*4C 模式下 128 ㎡/h
- 标准 6PASS：4C 模式下 26 ㎡/h ;24C 模式下 52 ㎡/h ;34C 模式下 78 ㎡/h ;4*4C 模式下 104 ㎡/h
- 高精 8PASS：4C 模式下 20 ㎡/h ;24C 模式下 40 ㎡/h ;34C 模式下 60 ㎡/h ;4*4C 模式下 80 ㎡/h
- 打印分辨率(Print Resolution)：720*1800DPI
- 介质类型(Media Type)：玻璃,亚克力,木板,瓷砖,金属板,PVC 板,发泡板,3C 产品,皮料等材料(Glass, Acrylic, Wood, Ceramic, Metal Sheet, PVC Sheet, Plastic, 3C product and etc. )
- 介质厚度(Media Thickness)：材料厚度≤100mm;车头升降≤100mm;>100mm 可定制(Max. 100mm;>100mm is available )
- 墨水类型(Ink Type)：UV 环保型 UV 墨水(UV Curing Ink )
- 特殊墨水(Special Ink)：LED 白色墨水或透明光油 / 磨砂 / 哑光金 / 幻彩(Optional White ink or Varnish/premier/bright gold thermoprint )
- 固化系统(Curing System)：LED 灯固化系统(LED Curing system )
- 输入格式(File Format)：TIFF/PDF/JPES/EPS/AI
- RIP 软件(RIP)：Photoprint/Onyx/Caldera/Colorget/Rain
- 数据传送接口(Data Connector)：USB2.0/3.0
- 输入电源(Power)：220VAC (±10%) 单相,50/60HZ(220VAC (±10%) Single Phase, 50/60 HZ )
- 机器功耗(Power Consumption)：5.7KW
- 机器尺寸 / 净重(Machine Size/N.W.)：4.5m(L)*2.1m(W)*1.4m(H)/1500KG
- 包装尺寸 / 毛重(Packing Size/G.W.)：4.9m(L)*2.28m(W)*1.75m(H)/1600KG
- 环境要求(Environment Requirement)：独立,洁净,低尘,少光,通风良好的工作间环境;温度：20℃ - 28℃,相对湿度：40% - 60%(separated, clean, low dust, well - ventilated environmental temperature:20℃ - 28℃;relative humidity:40% - 60% )
Core Technologies:
The YF-X2513 (Maglev) UV Flatbed Printer is a high-performance printing device with excellent configurations and comprehensive functions. It is equipped with the Ricoh Gen6 print head, ensuring high-quality printing results. Featured with a high-precision automatic height detection system, it can accurately sense the thickness of materials for stable printing. The sensitive carriage anti-collision system effectively protects the machine from damage during operation.
Moreover, it adopts an intelligent constant temperature ink circuit system to maintain stable ink performance, and uses LED cold curing technology, which not only enhances performance and reduces energy consumption but also prolongs the service life of the equipment. Additionally, the intelligent ink level alarm prompt system can timely remind users of the remaining ink volume.
.
🚀 Industry Applications
The YF-X2513 is designed to thrive in a wide range of industries, making it a versatile asset for various businesses:
Office Use: Perfect for creating high-quality internal signage, promotional materials, or custom office decor that reflects your brand identity.
Signage & Labels: Produce crisp, durable signs and labels for retail stores, events, or corporate spaces. The machine's precision ensures that text and logos are clear and professional1516.
Acrylic Light Boxes: Achieve stunning, light-transmitting prints on acrylic materials. The LED cold curing technology preserves the integrity of the acrylic, resulting in vibrant, long-lasting light box displays17.
Outdoor Advertising: From platform ads to fence/wall advertising, the prints are resistant to weather conditions, ensuring they remain vivid and intact even in harsh outdoor environments1819.
Party Building Wall Art: Create detailed, fade-resistant murals for institutional or community spaces, effectively conveying messages with clarity and impact20.
KT Board Printing: Ideal for producing temporary or event-specific displays. The machine handles KT boards with ease, delivering smooth, colorful prints for exhibitions, conferences, or promotions.
Whether it is efficient output in office scenarios or high-quality presentation in fields such as signage and outdoor advertising, the YF-X2513 (Maglev) UV Flatbed Printer can be your reliable printing partner with its advanced Ricoh Gen6 print head, intelligent systems and wide industry adaptability.
