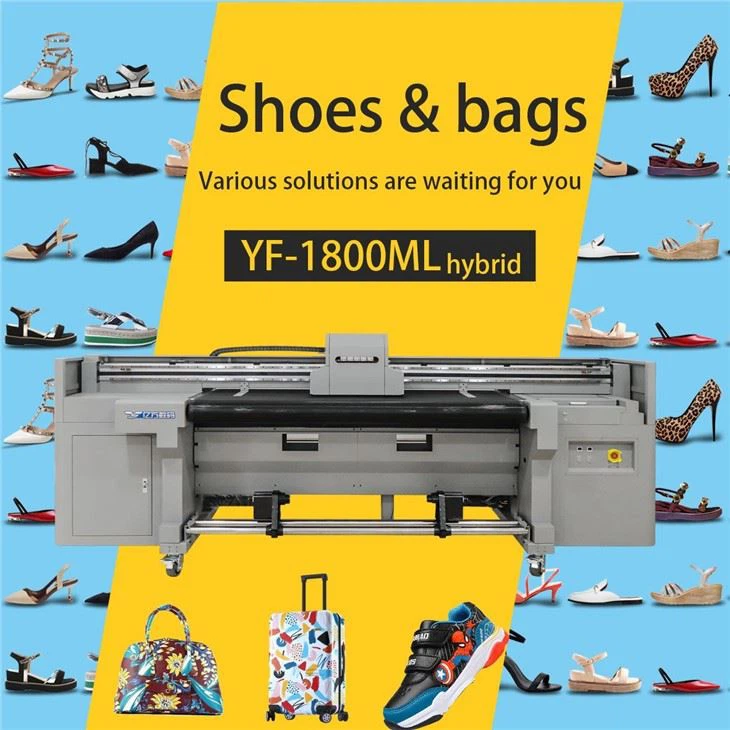

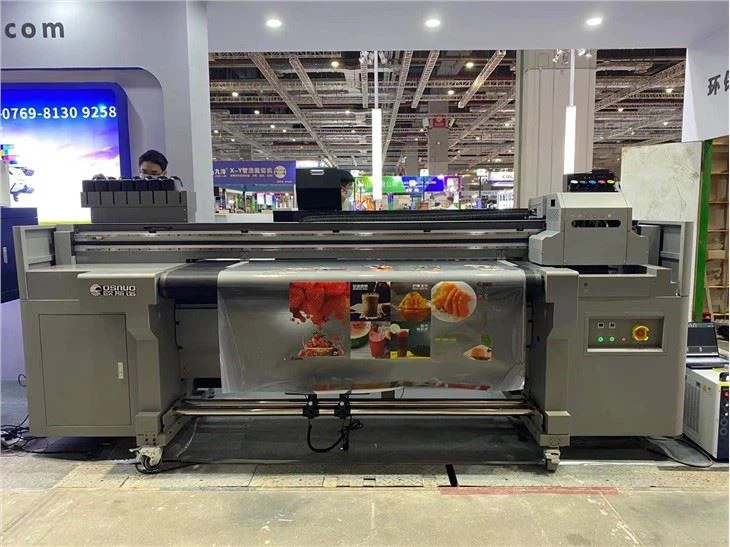

YF-1800ML: Belt-Driven UV Hybrid Printer for Flexible and Rigid Media
The YF-1800ML is a versatile belt-type UV hybrid printer designed for high-quality printing on a wide range of flexible and rigid substrates. Engineered with industrial-grade components, it supports Ricoh Gen5, Gen6, or Epson 13200 printheads, configurable from 2 to 8 units, ensuring high precision and reliability across various applications. With a maximum print width of 1800mm and compatibility with materials such as soft film, coated banner, 3P cloth, glass, ceramic, acrylic, and PVC-each with a thickness of up to 20mm-this system delivers both flexibility and performance. It achieves print speeds of up to 15 m²/h while maintaining a high resolution of 720×1800 DPI, making it suitable for detailed graphic output on both roll-to-roll and flatbed media.
A key feature of this printer is its industrial negative pressure system, which enables stable ink supply and consistent high-speed operation. The use of eco-friendly UV odorless inks ensures vibrant colors and smooth printing, particularly ideal for leather pattern applications and other premium surfaces. Users can select from multiple printing modes including 4C, 4C+W, 4C+W+V, and 2*4C, with optional white ink and varnish or specialty coatings such as bright gold thermoprint for enhanced finishes. The LED curing system offers energy-efficient and instant drying, reducing production downtime. Compatible with mainstream RIP software-including Onyx, Caldera, and Photoprint-the printer supports standard file formats such as TIFF, PDF, and AI, and includes a USB 2.0 interface for efficient data transfer.

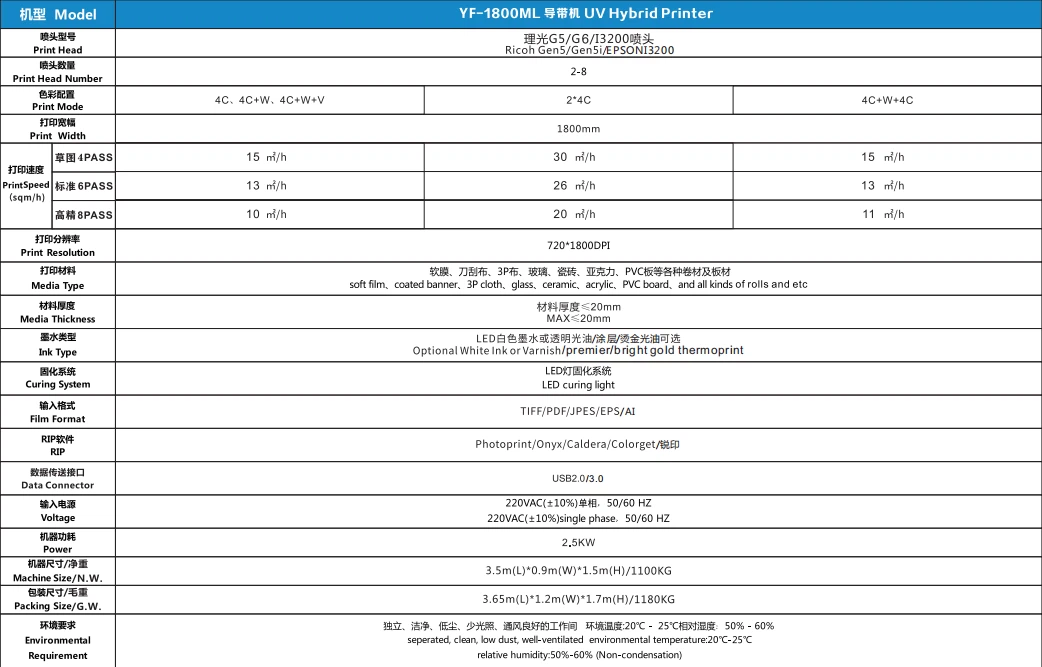

We provide global shipping with securely packaged units. The machine measures 3.5m (L) x 0.9m (W) x 1.5m (H) with a net weight of 1100 kg, while the packaged dimensions are 3.65m (L) x 1.2m (W) x 1.7m (H) and a gross weight of 1180 kg. It operates on a 220VAC (±10%) single-phase power supply at 50/60 Hz, with a total power consumption of 2.5 KW. For optimal performance, installation in a clean, low-dust, and temperature-controlled environment (20°C–25°C, 50%–60% humidity) is recommended. Comprehensive after-sales support includes technical guidance and maintenance services to ensure long-term operational stability.
-
Using three rows of nine nozzle design, compatible with different scheme configurations
2. High-precision deceleration machine to meet the requirements of feeding accuracy .
3. Equipped with a material tabletting device to better print various materials
4.Color white independent negative pressure design.
